X-Ray
These systems have become indispensable tools in the food industry for ensuring product safety and quality. They employ X-ray technology to inspect and analyze food items for a variety of purposes, including detecting contaminants, inspecting product quality, and even verifying package weight. X-Ray systems help prevent contaminated or substandard products from reaching consumers, thereby enhancing food safety and consumer brand confidence
In our commitment to delivering top-tier products, we are partnered with Mekitec; manufacturer of compact, easy-to-use, X-ray inspection systems that provide excellent performance and the best value in the industry.

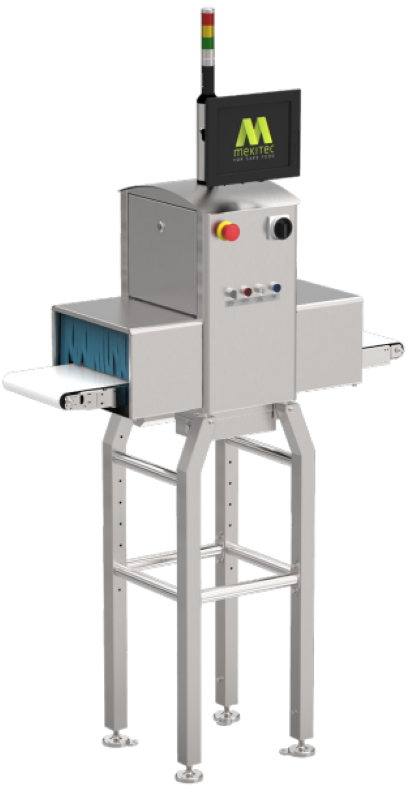

MEKI
Mekitec
MEKITM uses advanced X-ray imaging to detect foreign objects, ensure product quality, and maintain traceability. It works with all packaging types and requires minimal space in production lines.
Superior Detection
Scans food products using cutting-edge X-ray technology to detect foreign objects like metal, stones, glass, bones, and dense plastics.
Quality & Traceability
Ensures overall product quality while maintaining full traceability throughout the food production process.
Works with All Packaging
Handles high moisture, salt content, and various packaging materials including metal and aluminum without compromising accuracy.
Compact & Efficient
Requires minimal installation space, making it the most space-efficient X-ray quality control system available.
Detection Area
Technical Specifications
Conveyor speed: min. 0.1 m/s – max. 1.3 m/s
Conveyor load capacity: max. 5 kg
X-ray power: 30-60 kV, 0.2–2.5 mA, max 100 W
X-ray leakage: less than 1 µSv/h
Detector: Linear scanner, resolution 0.4 mm
Software: Mekitec X-Ray Inspection System SW
Operating system: Windows 10
Connectivity: USB, Ethernet
HMI: 12” Color TFT LCD Screen
Operation Temperature: 0–35°C ambient
Cooling: Optional cooling system
IP rating: IP54
Relative humidity: 30-85 %, non-condensing
System power supply: 110/240 VAC, 50–60 Hz
Dimensions (W x D x H): 800/1200 mm x 515 mm x 2000 mm
Weight: 100 kg
Material: Stainless steel, brushed
Reject options: Optional air reject or pusher with bins
System conveyor: EU and FDA food use approved conveyor belt
Radiation protection: EN 61010-02-091, FDA CFR 21 part 1020, 40
Safety system: Safety circuit CAT 3, Performance Level PL d

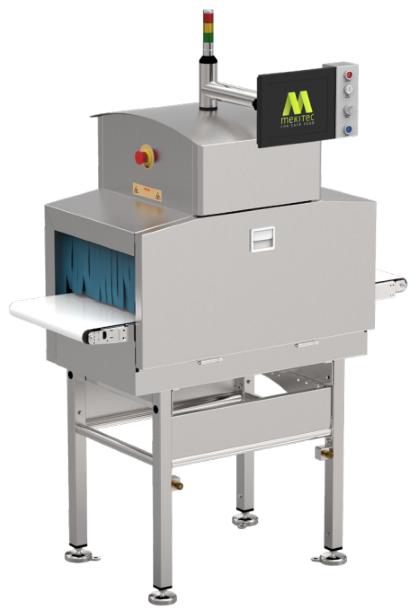

MIDMEKI
Mekitec
MIDMEKI combines cutting-edge X-ray imaging with a wider conveyor and larger detection area, ensuring precise inspection of medium-sized products and trays. It handles high moisture, salt content, and metal packaging with ease focusing on what truly matters for food producers.
Cutting-Edge Detection
Utilizes the latest X-ray image processing for superior food safety.
Optimized for Medium-Sized Products
Designed for larger primary packaged food and trays of smaller items.
Versatile & Reliable
Handles high moisture, salt content, and metal/aluminum packaging with ease.
Focused on What Matters
Delivers essential X-ray inspection features tailored for food producers.

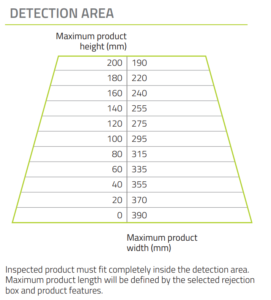

Detection Area
Technical Specifications
Conveyor speed: MI.S1: 0.1-1.0m/s
MI.S2 and MI.S3 available gear box configurations:
• 0.5–1m/s
• 0.28–0.58m/s
• 0.16–0.3m/s
Conveyor load capacity: MI.S1: max. 5kg
MI.S2 & MI.S3: max. 20kg
X-ray power: 40-80kV, 0.2–5.0mA, max 200W
X-ray leakage: less than 1µSv/h
Detector: Linear scanner, resolution 0.4mm
Software: Mekitec X-Ray Inspection System SW
Operating system: Windows 10
Connectivity: USB, Ethernet
HMI: 12” Color TFT LCD Screen
Operation Temperature: 0–35°C ambient
Cooling: Optional cooling system
IP rating: IP65
Relative humidity: 30-85 %, non-condensing
System power supply: 110/240VAC, 50–60Hz
Dimensions (W x D x H): 1000/1400mm x 702mm x 2020mm
Weight: 250kg
Material: Stainless steel, brushed
Reject options: Optional air reject or pusher with bins
System conveyor: EU and FDA food use approved conveyor belt
Radiation protection: EN 61010-02-091, FDA CFR 21 part 1020, 40
Safety system: Safety circuit CAT 3, Performance Level PL d

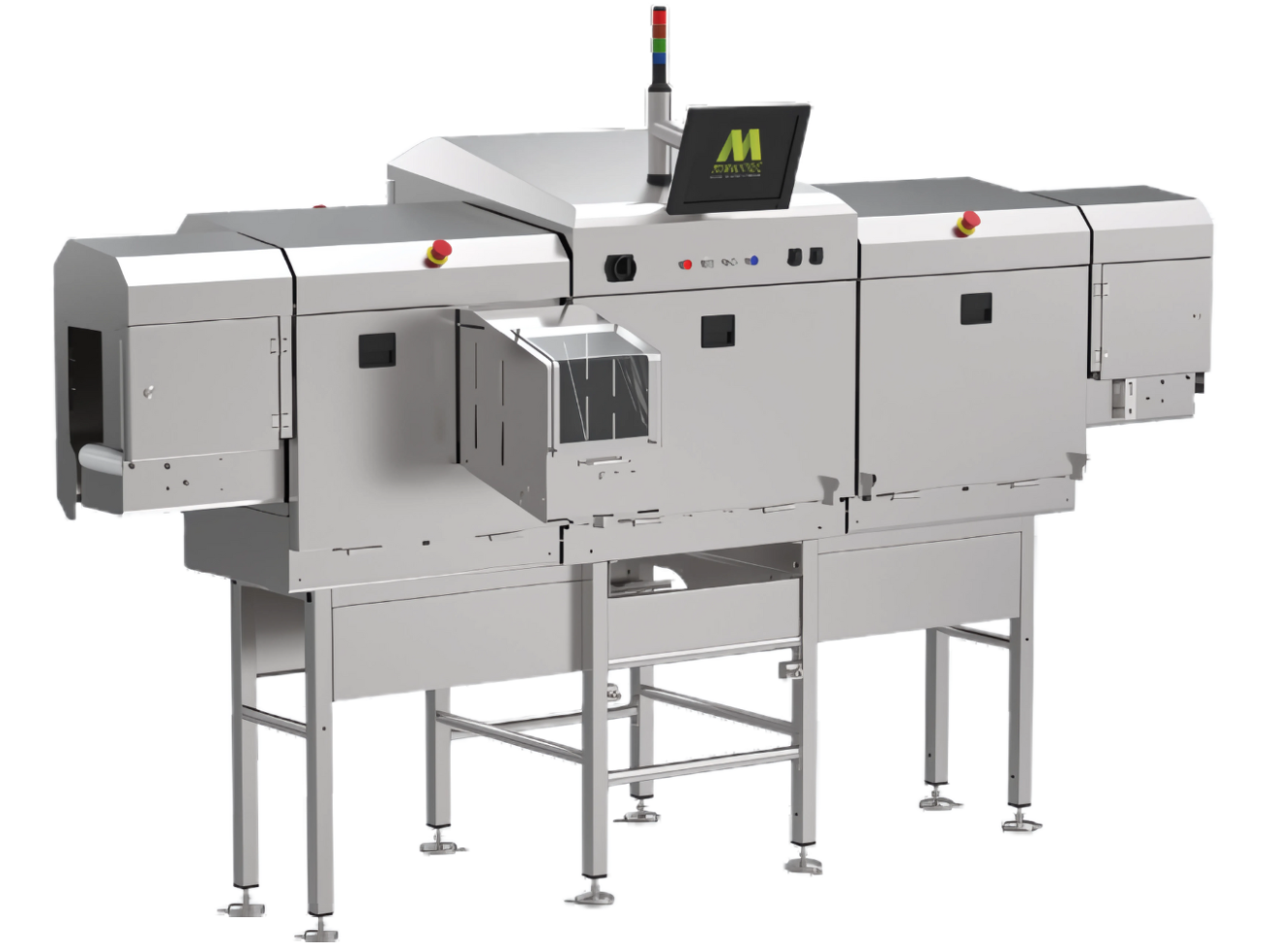

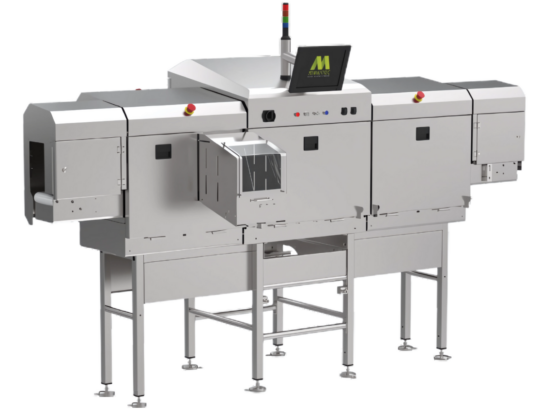

SIDEMEKI
Mekitec
Designed for tall packages like bottles, cartons, and cans, SIDEMEKI™ ensures smooth production flow. It offers customizable X-ray inspection with one or two generators for optimal accuracy in foreign object detection, fill level checks, and cap inspection delivering the best value in the industry.
Designed for Tall Packages
Ideal for bottles, cartons, containers, and cans.
Seamless Production Flow
Optimized for high-speed lines without disruptions.
Customizable X-ray Inspection
Choose one or two X-ray generators based on inspection needs.
Unmatched Accuracy
Detects foreign objects, checks fill levels, and inspects caps ensuring top-tier quality control.

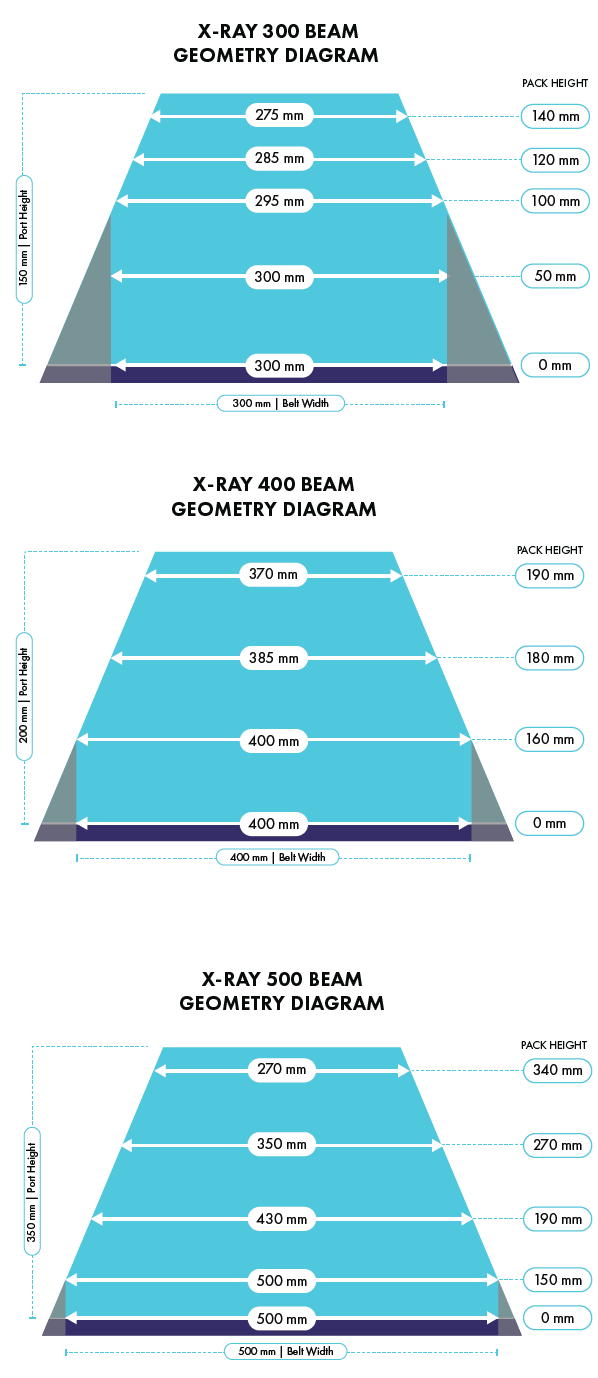

Detection Area
Technical Specifications
Conveyor speed: 0.3 – 2.3ft/s[1]
Conveyor motors: 2 x motor roller 230VAC, IP69K
Conveyor load capacity: Max. 154 lbs[2]
X-ray generators: 1 or 2 X-ray generators, 200W
X-ray leakage: less than 1 µSv/h
Detector: 1 or 2 detectors, linear scanner, resolution 0.4 mm
Software: Mekitec X-ray inspection System SW
Operating system: Win 10
Connectivity: 2 x USB, 1 x Ethernet
HMI: 15” Color TFT LCD Screen
Operation Temperature: 32-95° F ambient
Cooling: Optional 1000W air conditioner
Noise level: < 81.3dB(A)
IP rating: IP65[3]
Relative humidity: 30-85%, non-condensing
System power supply: 110/240 VAC, 50-60Hz
Dimensions:
Width: 136”
Depth: 52” or 64” depending on
the rejection bin[4]
Height: 93”
Weight: 1830 lbs, with cooling unit 1940 lbs
Material: Stainless steel, brushed
Reject options:
1 rejecter: for foreign object detection and other quality functions like fill level and cap detection
2 rejecters: 1st for foreign object detection, 2nd for other quality functions
Set-up will be selected based on the application
Rejection confirmation: Available as an option
Rejection box:
Option 1: 28” depth, 13” width
Option 2: 16” depth, 13” width
System conveyor: EU and FDA food use approved conveyor chain belt
Radiation protection: Meets EN 61010-02-091, FDA CFR 21 part 1020, 40
Safety system: Safety Circuit CAT 3, Performance Level PL d
In-feed/out-feed options:
Option 1: end-feed
Option 2: side-feed

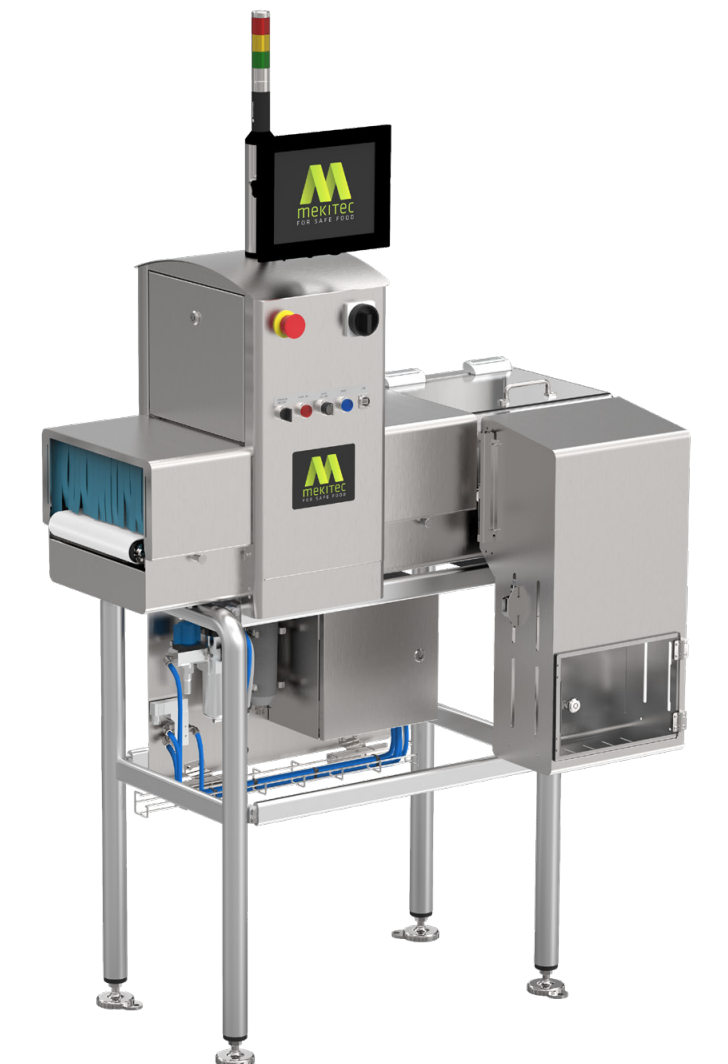

ONE
Mekitec
MEKI™ ONE delivers top-tier X-ray sensitivity in the smallest footprint, packed with essential features like automatic reject, confirmation sensors, and system reporting. It’s the easiest way for food producers to implement high-quality X-ray inspection while ensuring compliance with global standards maximizing value and efficiency.
Small Footprint, Big Performance
Powerful X-ray sensitivity in a compact design.
All-in-One Critical Control
Includes automatic reject, rejection bin, confirmation sensors, and system reporting.
Easy Integration
Seamlessly fits into any packaging line for effortless quality control.
Best Value Investment
Meets global quality standards while maximizing efficiency and cost-effectiveness.

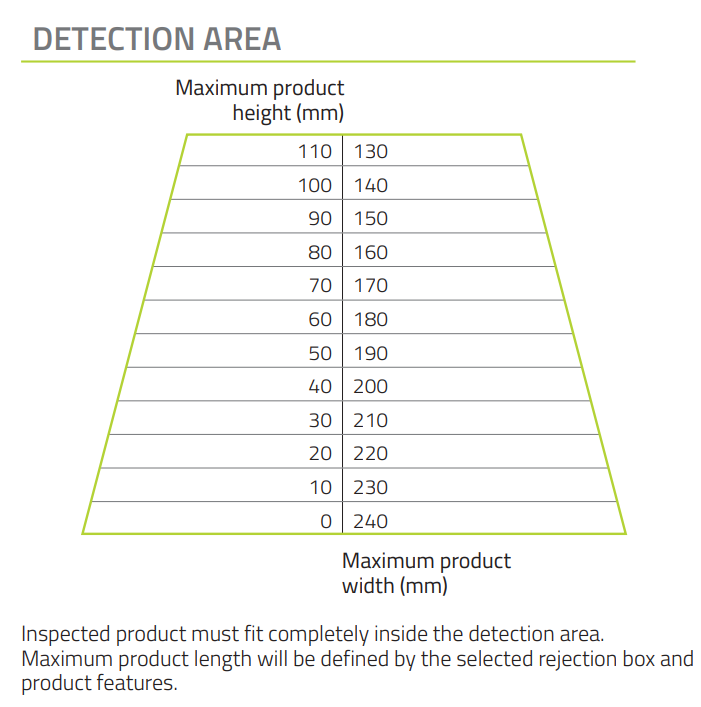

Detection Area
Technical Specifications
Conveyor speed: min. 0.1 m/s – max. 1.3 m/s
Conveyor load capacity: max. 5 kg
X-ray power: 30-60 kV, 0.2–2.5 mA, max 100 W
X-ray leakage: less than 1 µSv/h
Detector: Linear scanner, resolution 0.4 mm
Software: Mekitec X-Ray Inspection System SW
Operating system: Windows 10
Connectivity: USB, Ethernet
HMI: 12” Color TFT LCD Screen
Operation Temperature: 0–35°C ambient
Cooling: Optional cooling system
IP rating: IP54
Relative humidity: 30-85 %, non-condensing
System power supply: 110-230 VAC, 50/60 Hz
Dimensions (W x D x H): 1200/1280 mm x 715 mm x 2000 mm
Weight: 155 kg
Material: Stainless steel, brushed
Reject: Integrated air reject with bin and standard reject confirmation
Options: One/two conveyor model, push-arm reject, hand sensors* and full reject confirmation
System conveyor: EU and FDA food use approved conveyor belt
Radiation protection: EN 61010-02-091, FDA CFR 21 part 1020.40
Safety switches: Safety circuit CAT 3, Performance Level PL d
